Limit equilibrium method (LEM)

The limit equilibrium method consists of the study of the equilibrium between a rigid body, such as the slope, and of a slip surface of any shape (straight line, arc of a circle, logarithmic spiral, etc.). From this equilibrium are calculated shear stresses (t) and compared to the available resistance (tf) calculated according to Mohr-Coulomb's failure criterion. From this comparison we derive the first indication of stability as the Factor of Safety:

F =tf /t

Among the various equilibrium methods some consider the global equilibrium of the rigid body (Culman), while others divide the rigid body into slices to cater for its non homogeneity and consider the equilibrium of each of these (Fellenius, Bishop, Janbu, etc.).

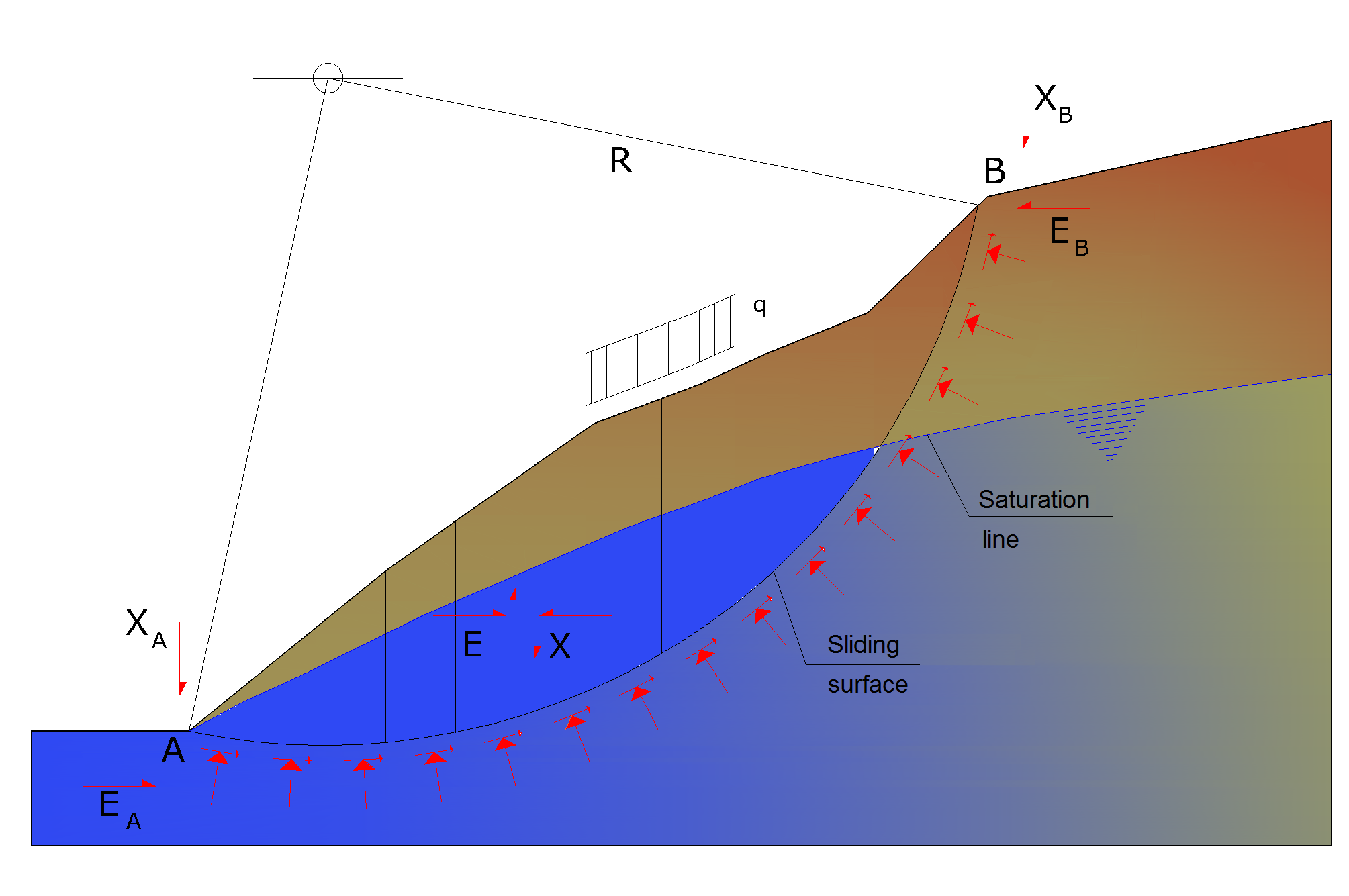

Representation of a calculation section of a slope

Slice method

The volume affected by slide is subdivided into a convenient number of slices. If the number of the slices is n the problem presents the following unknowns:

In all the unknowns are (6n-2).

Actions on the i-the slice

While the equations are:

In all there are 4n equations.

The problem is statistically indeterminate to the extent of:

i = (6n-2)-(4n) = 2n-2

The degree of indetermination is further reduced to (n-2) as it is assumed that Ni is applied at a mid point of the slice, which is equivalent to assume the hypothesis that total normal stresses are distributed uniformly.

The various methods that are based on limit equilibrium theory differ in the way in which the (n-2) degrees of indetermination are eliminated.
